32M Truck-Mounted Concrete Pump
Truck-Mounted Concrete Pump 32M KNL5208THB32-5RZ Vertical Reach: 27 – 32 m Output: 100 m³/h Pressure: 7.3 MPa New wpDataTable Model KNL5208THB32-5RZ Pumping Sytem Item Unit Max. Theoretical Conveying Capacity m³/h 100 Max. Theoretical Concrete Outlet Pressure MPa 7.3 Hopper Capacity L 600 Filling Height mm 1400 Hydraulic System Type Open…
Categories：
Tags:
china Concrete Pump Truck manufacturer, Concrete Mixer Pump Truck manufacturer, Concrete Pump Truck for sale, Truck Mounted Concrete Pump, Truck Mounted Concrete Pump Manufacturer
Get A Quote
If you have any questions about our products and service,please feel free to leave us a message

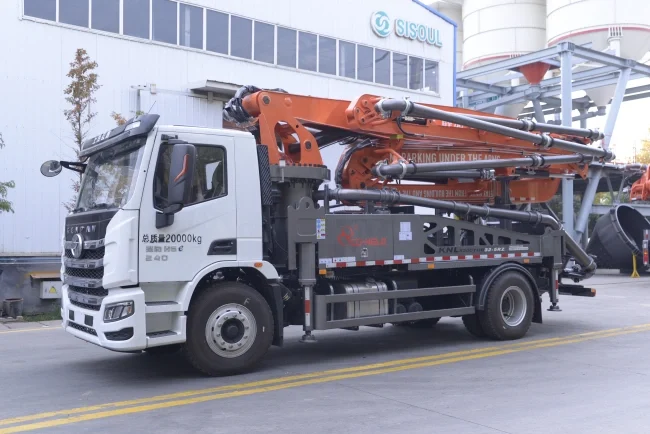

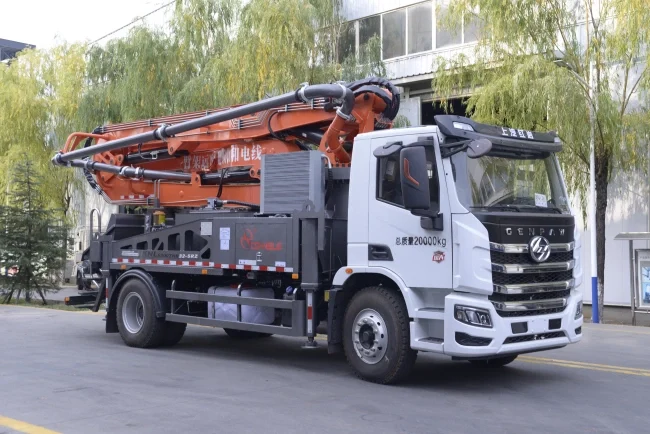

Truck-Mounted Concrete Pump 32M
KNL5208THB32-5RZ
Vertical Reach: 27 – 32 m
Output: 100 m³/h
Pressure: 7.3 MPa
New wpDataTable
| Model | KNL5208THB32-5RZ | |||
| Pumping Sytem | Item | Unit | ||
| Max. Theoretical Conveying Capacity | m³/h | 100 |
 |
|
| Max. Theoretical Concrete Outlet Pressure | MPa | 7.3 | ||
| Hopper Capacity | L | 600 | ||
| Filling Height | mm | 1400 | ||
| Hydraulic System Type | Open Loop | |||
| Distribution Valve | S Valve | |||
| Concrete Cylinder Dia. & Stroke | mm | Φ230 x 1400 | ||
| Hydraulic Oil Cooling | Air Cooling |
 |
||
| Placing Boom | Structure Type | 32-5RZ | ||
| Vertical Reach | m | 32.0 | ||
| Horizontal Reach | m | 27.1 | ||
| Slewing Angle | ±270° | |||
| Pipe Dia. | mm | 125 | ||
| Min. Boom Opening Height | m | 5.8 | ||

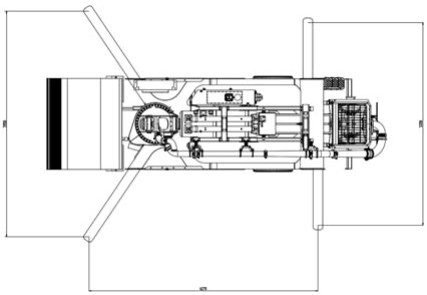

| Chassis & Whole Machine | Outriggers Span (Front x Rear x Side) | mm | 5950 x 5350 x 6270 |
 |
| Wheelbase | mm | 4500 ~ 4600 | ||
| Engine Type | YCS06270-61 | |||
| Engine Power | KW | 201 | ||
| Engine Oil Tank Capacity | L | 300 | ||
| Exhaust Emission Standard | China National VI | |||

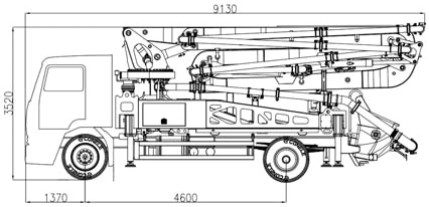

| Overall Dimension （L x W x H） | mm | 9130 x 2500 x 3520 | ||
| Hydraulic Oil Tank Capacity | L | 400 | ||
| Control Mode | Manual + Remote Control | |||
| Pipe Cleaning Mode | Water cleaning / Dry | |||
| Main Components Configuration | Boom Control Mode | Manual + Remote Control | ||
| Outriggers Open | Front X-type / Rear H-type | |||
| Boom Steel Type | High-Strength Steel Plate | |||
| Control Power | Powered by Chassis | |||
| Working Voltage | DC 24V | |||
| Main Hydraulic System Type | Push / SKS | |||
| Main Hydraulic Pump Displacement | 190 ml/r |
